MTP®/MPO Harness

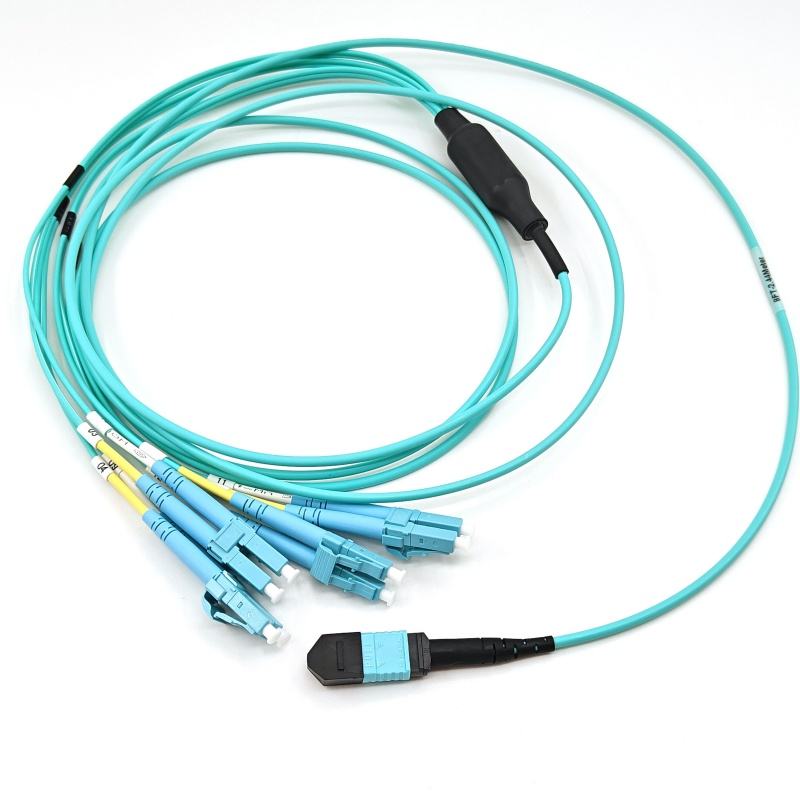

MTP®/MPO Harness

Key Features
  • Supports SM,OM3/OM4/OM5
  • Migration for 40G/100G/200G/400G/800G
  • TIA/IEC standards compliant
  • Comply with RoHS/REACH requirement
  • Pulling eyes (optional) protect the cable and connectors during installation.
  • Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customizable

Applications
  • Data center interconnect
  • High-density cross connect
  • Telecommunication networks
  • Broadband/CATV networks
  • Backbone installation
  • LAN/WAN

Products Overview

Gracyfiber’s MTP®/MPO Cassettes are high-performance, pre-terminated modular solutions designed to simplify fiber deployment in high-density data center and enterprise network environments. These cassettes enable seamless migration to 40G, 100G, 400G, and future Ethernet standards.
Housed in a compact LGX-compatible or rack-mountable form factor, each cassette integrates factory-polished MTP® trunk cables with breakout fan-outs (e.g., LC, SC) to deliver consistent optical performance. Available in both Standard and Elite performance grades.

ConnectorModeEndfaceStandardElite
IL (max) dBRL (min) dBIL (max) dBRL (min) dB
MPO/MTP®SM12F/APC≤0.70≥60≤0.35≥60
24F/APC≤0.75≥60≤0.35≥60
48F/APC≤0.75≥60
MM12F/PC≤0.50≥30≤0.35≥30
24F/PC≤0.50≥30≤0.35≥30
48F/PC≤0.50≥30
LC / SC / FC / STSMAPC≤0.30≥60≤0.15≥60
UPC≤0.20≥50≤0.15≥50
MMPC≤0.20≥30≤0.15≥30
Note:

1.Test wavelength: SM@1310/1550nm, MM@850/1300nm;
2.Standard conformance: GR-326, GR-1435.

Mechanical Properties
ItemCriteriaConformance
ΔIL After 50 MatingsMPO/MTP®≤0.3dBGR-1435
ΔIL After 500 MatingsLC/SC/FC/ST≤0.2dBIEC 61300-2-2
Min Bend Radius (Dynamic)20×OD (Cable Diameter)
Min Bend Radius (Static)15×OD (Cable Diameter)
Environment Conditions
ItemCriteriaConformance
Operation Temperature-20~70°CIEC 61753-1
Storage Temperature-40~85°C
