GracyFiber Optical Fiber WDM Filter is a high-performance thin-film wavelength management device designed for precise separation and combination of multiple optical bands over a single fiber. Supporting 1310 nm, 1550 nm, and C-band Red / Blue wavelengths, the filter operates across the 1260–1620 nm spectrum to enable efficient multi-service signal routing.

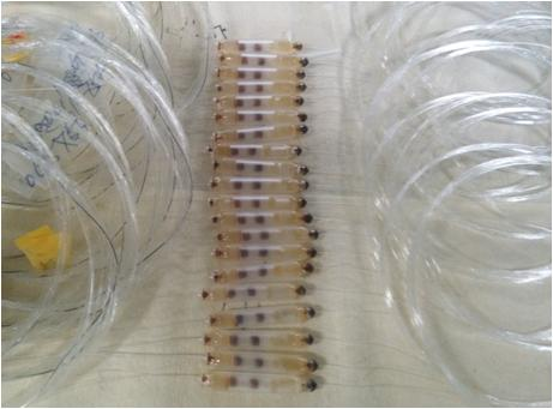

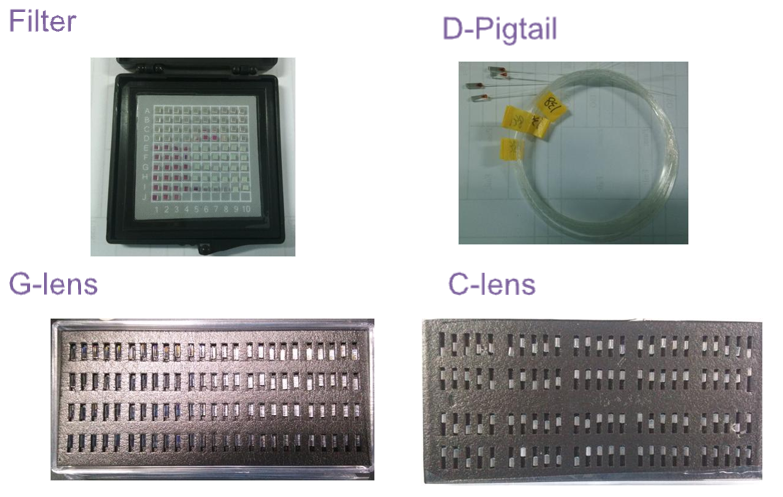

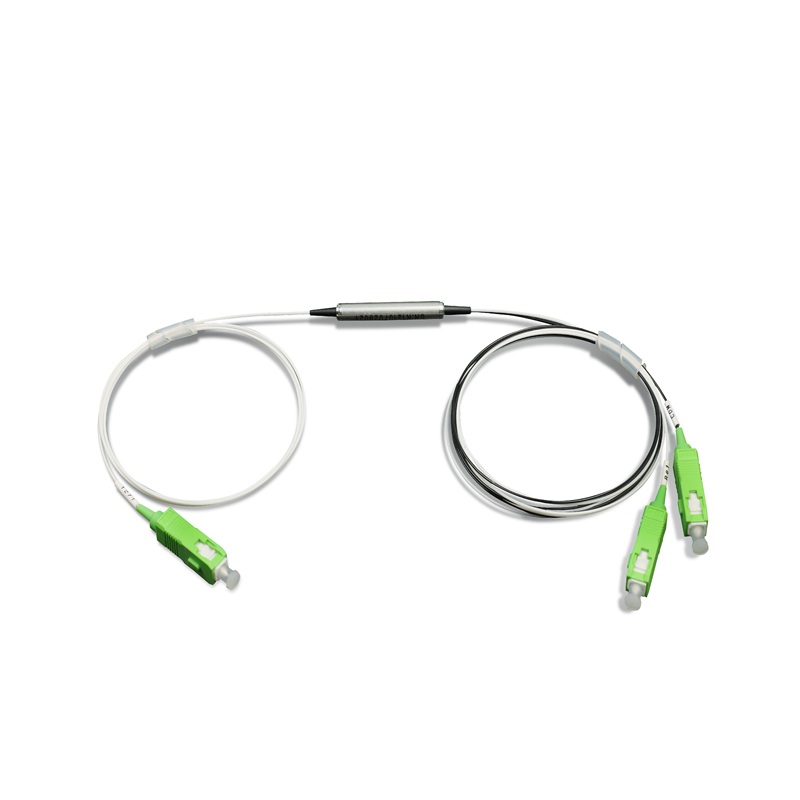

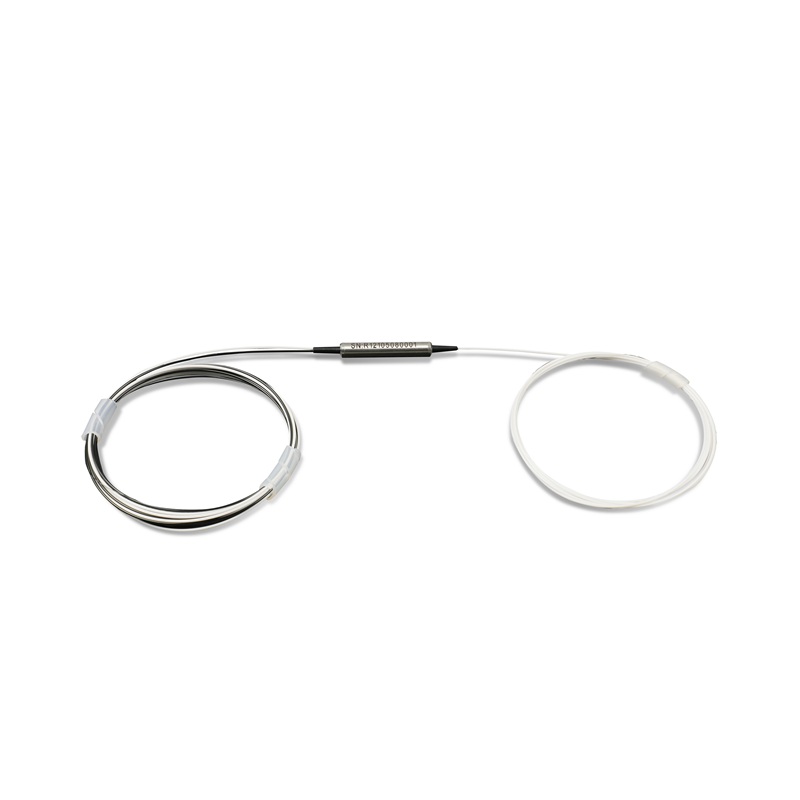

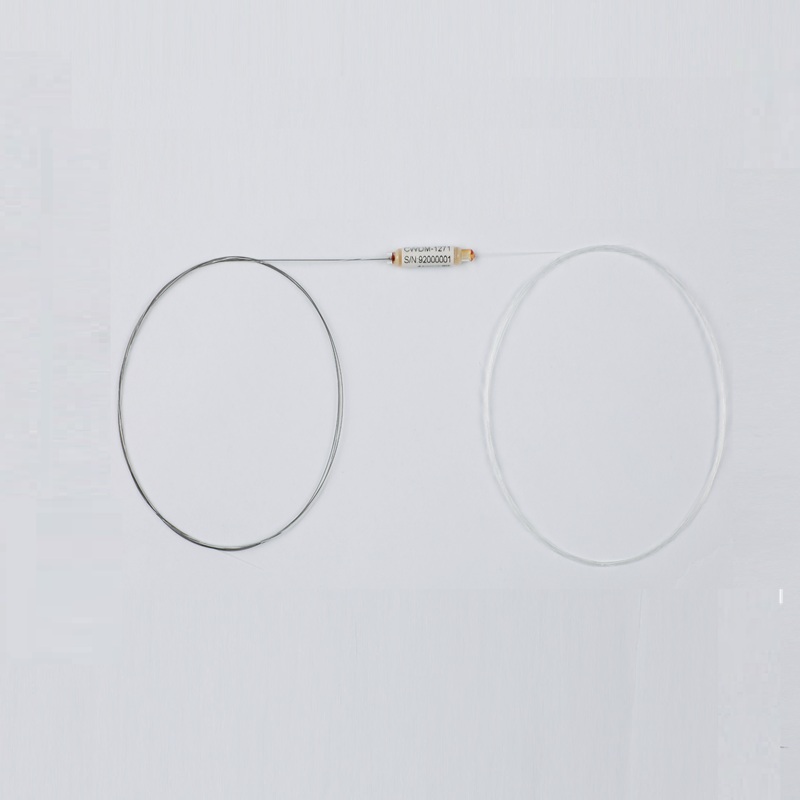

Based on an all-fiber optical structure, the device delivers ultra-low insertion loss, high isolation, and extremely low PDL, ensuring minimal impact on live traffic. With multiple packaging options—from miniature fiber tubes to 19″ rack-mounted modules—it is well suited for access, metro, and system-level optical integration.
| Parameter | Unit | Value | ||||
| Operating Wavelength | nm | 1260~1620 | ||||
| Pass Band Wavelength | nm | Red (1547.4~1561） | Blue (1530~1543.2 ) | 1550 (1528-1565) | 1310(1260~1360） | |
| Reflect Band Wavelength | – | Blue( 1530~1543.2) | Red (1547.4~1561） | 980 (965-995) | 850 (800~900) | |
| Insertion Loss | Max.Pass | dB | 0.6 | 0.6 | 0.6 | 0.6 |
| Max.Reflect | dB | 0.4 | 0.4 | 0.4 | 0.4 | |
| Isolation | Transmission | dB | ≥30 | ≥30 | ≥30 | ≥30 |
| Reflection | dB | ≥15 | ≥15 | ≥15 | ≥15 | |
| Ripple | Max | dB | 0.3 | 0.3 | 0.3 | 0.3 |
| PDL | Max | dB | 0.10 | |||
| Return Loss | Min | dB | 40 | |||
| Directivity | Min | dB | 50 | |||
| Power Handing | Max | mW | 300 | |||
| Fiber Type | – | G67A1/ A2/ B3 or SMF-28 | SMF-28&HI1060 | SMF-28&OM1..OM5 | ||
| Fiber Coating | um | 250 µm / 900 µm loose tube | ||||
| Fiber Length | mm | 1000 | ||||
| Connector | – | LC/UPC or Customized | ||||
| Dimensions (HxWxD) | mm | Φ5.5xL38, 90x20x10, 120x80x18, 155x129x29, 482x250x44 | ||||
| Operating Temperature | °C | -5~65 | ||||
| Storage Temperature | °C | -40~85 | ||||
