Products Overview

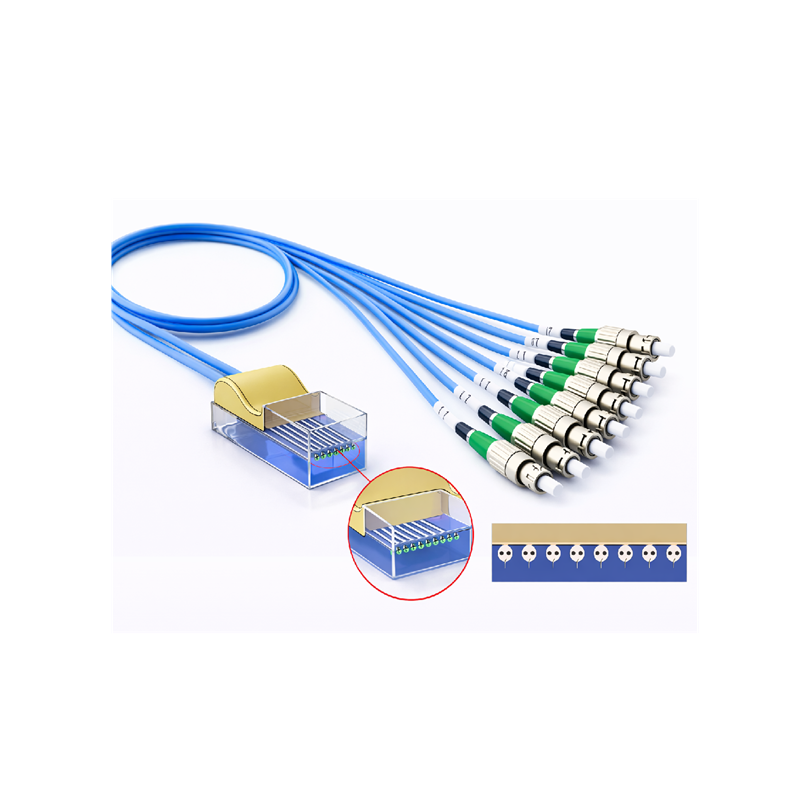

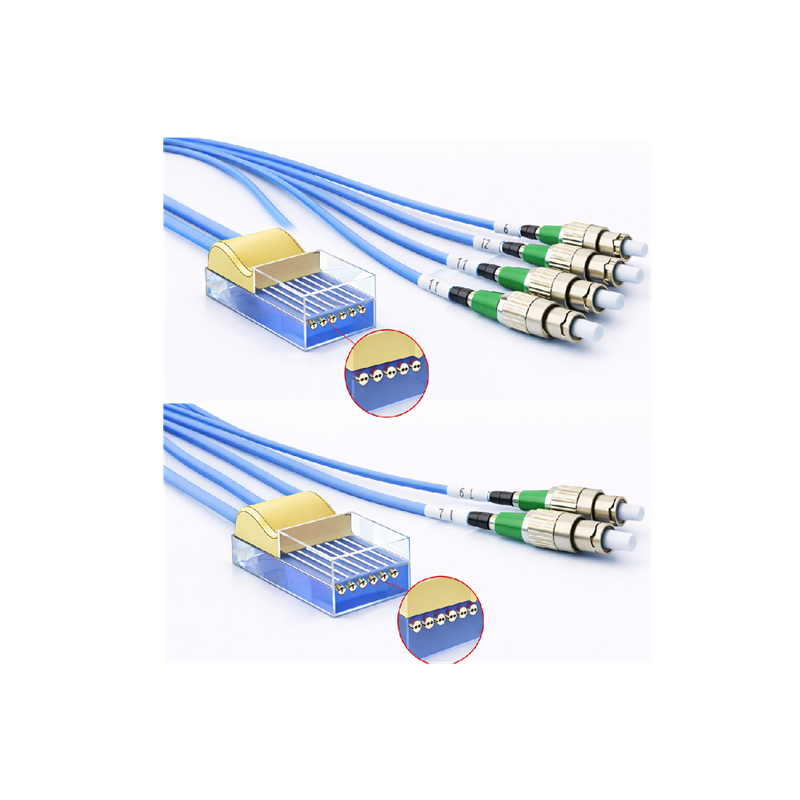

Gracyfiber’s PM FA is a high-precision multi-channel fiber array designed for applications demanding strict polarization control, high alignment accuracy, and long-term stability. With support for 1–128 channels and broad wavelength coverage, it’s ideal for advanced photonic systems and OEM integration.
| Parameter | Unit | 1 | 2 | 4 | 8 | 12 | 16 | 24 | 32 | 48 | 64 | 96 | 128 | |
| Wavelength | nm | 460,630,780,850,980,1060,1310,1550,1650,1950 | ||||||||||||
| Materials | – | Pyrex, Tempax, Quartz, Silicon | ||||||||||||
| Lid Option | Lid / Lidless | |||||||||||||
| CorePitch | – | – | 250 | 127/250 | 127/250 | 127/250 | 127 | 127 | 127 | 127 | 127 | 127 | 127 | |
| Core Pitch Tolerance | μm | +/-0.3 | +/-0.5 | +/-0.7 | +/-1.0 | |||||||||
| Polish Angle | Degree | 8°,41°,82°,90° or customized (12°, 21°,…) (±0.5°) | ||||||||||||
| Angle Type | – | A Type or V Type | ||||||||||||
| Insertion Loss | dB | ≤0.5(Typical 0.3) | ||||||||||||
| Polarization Extinction Ratio (PER) | dB | ≥20 (Typical ≥23) | ≥18 (Typical ≥20) | |||||||||||
| Polarization Axis Reference | – | Slow axis / Fast axis | ||||||||||||
| Axis Orientation | Degree | 0° /45°/ 90° / Customized | ||||||||||||
| Axis Alignment Accuracy | Degree | ≤ ±2° (Typ. ±1°) | ||||||||||||
| Return Loss | dB | UPC≥45, APC≥55 | ||||||||||||
| FA Dimension | W | mm | 2.5 | 2.5 | 2.5 | 2.5 | 3.5 | 3.5 | 5.7 | 5.7 | 9 | 10 | 15 | 19.2 |
| H | mm | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
| L | mm | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 | 12 | 15 | 18 | |
| – | – | Standard or Customized | ||||||||||||
| PM Fiber Type | – | Panda PM (standard) / Bow-tie (optional) | ||||||||||||
| Fiber Coating | um | 250 µm / 900 µm loose tube / ribbon (optional) | ||||||||||||
| Fiber Type Length | cm | 100+/-10 or customized | ||||||||||||
| Connector | – | .FC/LC/SC/E2000/MT/MPO/MMC | ||||||||||||
| Operation Temperature | °C | -5~65 | ||||||||||||
| Storage Temperature | °C | -40~85 | ||||||||||||
Packaging Options：
- Pigtailed
- FAU
- Hermetic
- Lidless
- Hybrid Integration Ready
Why Gracyfiber Fiber Arrays
- More than assembly — engineered performance you can rely on.
- 20+ years of fiber alignment & optical packaging experience
- ISO cleanroom manufacturing with strict process control
- Customization that scales — pitch, MFD, polishing, substrates
- Measured, documented, traceable optical performance
