Products Overview

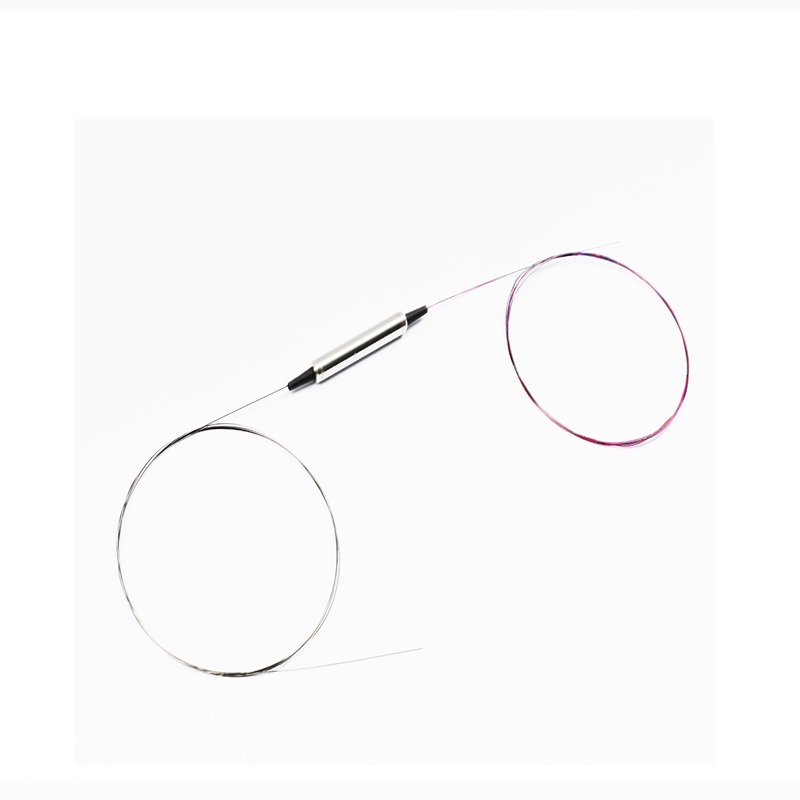

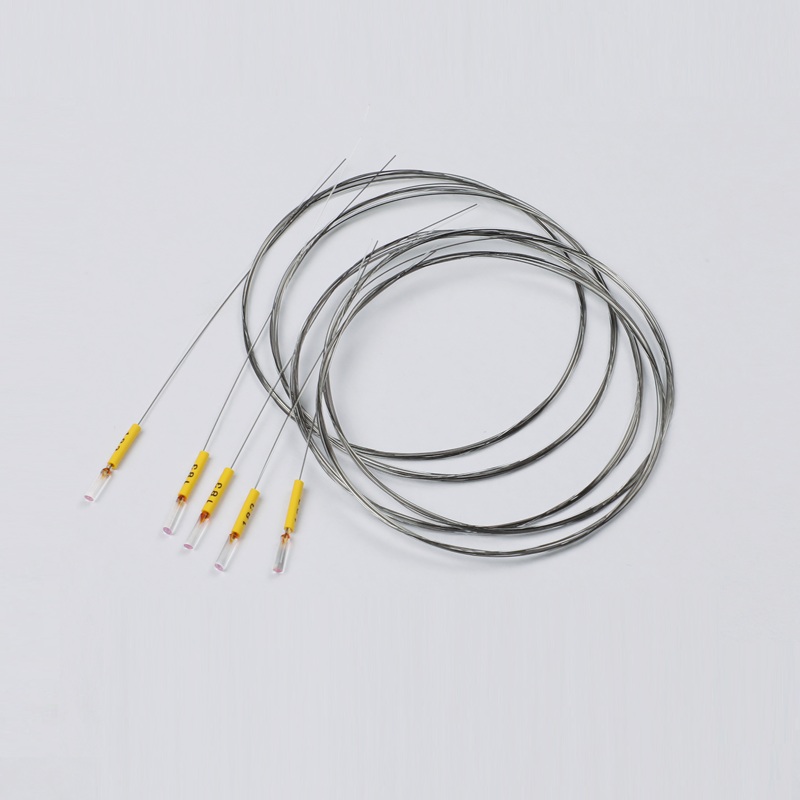

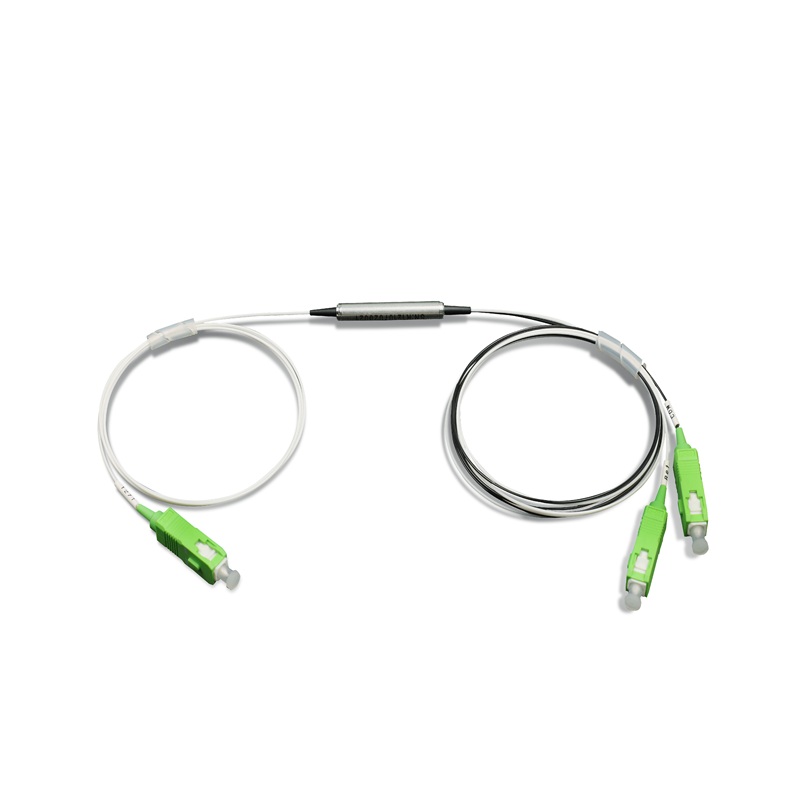

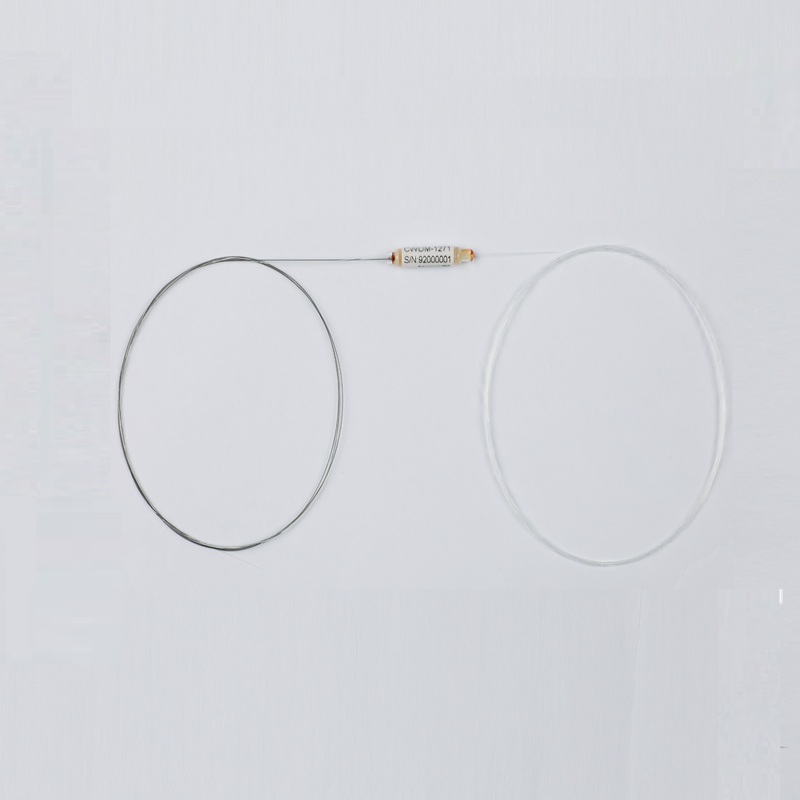

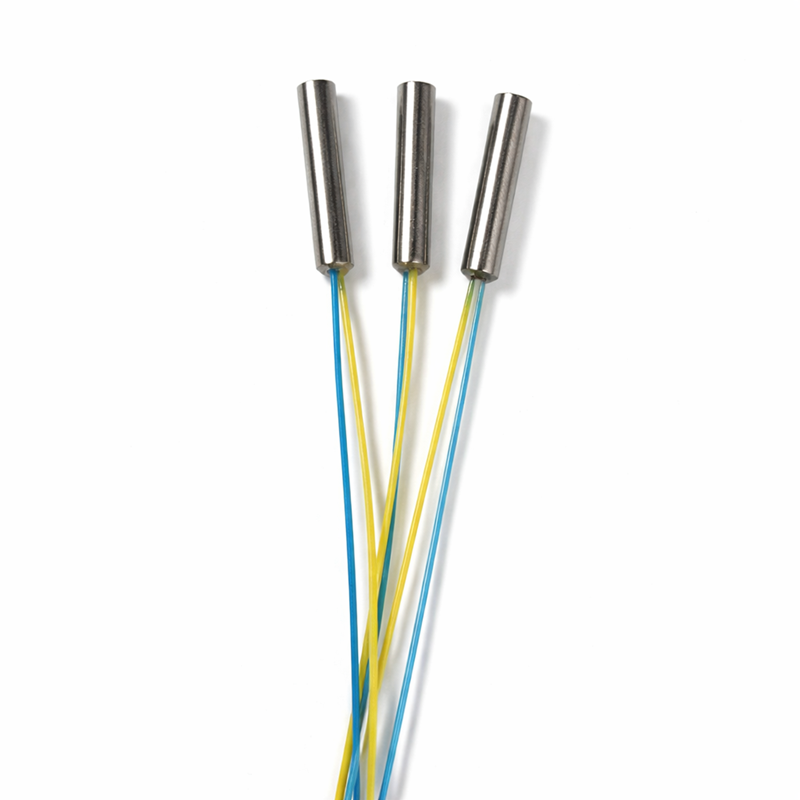

Gracyfiber’s Reflective WDM (High Isolation) is a miniature, high-performance bidirectional filter that seamlessly separates 1310 nm and 1550 nm signals in a single fiber—ideal for PON, 5G fronthaul, and hybrid access networks. With ≥50 dB transmission isolation, ultra-low insertion loss, and a compact Φ3.0 × 15 mm package, it enables space-efficient, cost-effective wavelength routing without active components.
Engineered for reliability and precision, this reflective WDM delivers exceptional signal integrity for applications demanding strict channel separation and minimal footprint.
| Parameter | Unit | Value | ||
| Operating Wavelength | nm | 1260~1620 | ||
| Pass Band Wavelength | nm | 1310 (1260~1337) | 1550 (1503~1577) | |
| Reflect Band Wavelength | nm | 1550 (1503~1577) | 1310 (1260~1337) | |
| Insertion Loss | Max.Pass | dB | 1.1 | 1.1 |
| Max.Reflect | dB | 0.7 | 0.7 | |
| Isolation | Transmission | dB | ≥50 | ≥50 |
| Reflection | dB | ≥15 | ≥15 | |
| Ripple | Max | dB | 0.5 | 0.5 |
| PDL | Max | dB | 0.10 | |
| Return Loss | Min | dB | 40 | |
| Directivity | Min | dB | 50 | |
| Power Handing | Max | mW | 300 | |
| Fiber Type | – | G67A1/ A2/ B3 or SMF-28 | ||
| Fiber Coating | um | 250 µm / 600 µm loose tube | ||
| Fiber Length | mm | 100 | ||
| Connector | – | LC/UPC(Receptacle & Ferrule) | ||
| Package Dimension (ΦxL) | mm | Φ3.0xL15 | ||
| Operating Temperature | °C | -20~70 | ||
| Storage Temperature | °C | -40~85 | ||
Mechanical Dimensions（Refer to the below）
